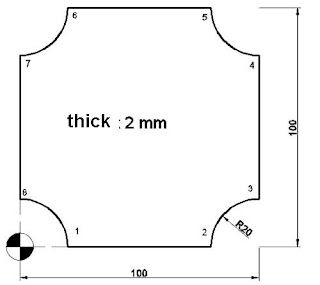

part program for the given profile

N05 G00 G90 G40 G80 G54 G21 G94 G49 G00 G90 G40 G80 G54 G21 G94 G49 N05
N10 G91 G28 Z0 N10 G91 G28 Z0
N15 G28 X0 Y0 N15 G28 X0 y0
N20 M06 T01 N20 M06 T01
N25 M03 S1200 N25 M03 S1200
N30 G90 G00 X20 Y0 :
N35 G00 G43 Z2 H1 N35 G00 G43 H1 Z2
N40 G01 Z-2 F150 M08 M08 N40 G01 Z-2 F150
N45 X80 F300
N50 G02 X100 Y20 I20 J0 F200
N55 G01 Y80 F300
N60 G02 X80 Y100 I0 J20 F200
N65 G01 X20 F300
N70 G02 X0 Y80 I-20 J0 F200
N75 G01 Y20 F300
N80 G02 X20 Y0 I0 J-20 F200
N85 G00 Z10 N85 G00 Z10
N90 M09 N90 M09
N100 G91 G28 Z0 N100 G91 G28 Z0
N105 G28 X0 Y0 N105 G28 X0 y0
N110 M05 N110 M05
N115 M30 N115 M30
